Ebtron

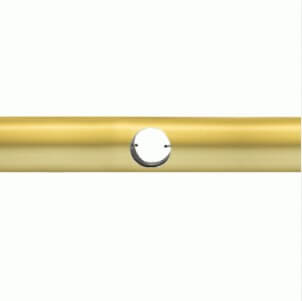

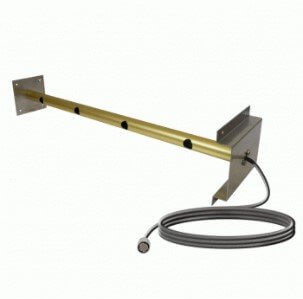

Advantage IV Gold Series GTx116e-PC
Locations Available:
Arizona, New Mexico, Southern Nevada, Southwestern Texas
Additional Information
-
Description
The GTx116e-PC is EBTRON’s top-of-the-line solution for accurate and repeatable measurement in ducts and plenums. Ruggedized RH sensor option (/H), onboard barometric pressure sensor and velocity-weighted temperature results in accurate enthalpy and dew point calculations. Ideal for supply, return and outdoor air intake applications on systems with an airside economizer. Bluetooth® low energy technology interface.
- Thermal Dispersion Airflow Technology
- Supports up to 16 Sensor Nodes
- NIST-traceable Calibration
- %-of-reading Airflow Accuracy
- Airflow and Status Alarms
- Velocity-weighted Temperature
- Output %RH, Enthalpy or Dew Point¹
- Three Mounting Styles
- Remote Transmitter with LCD Display
- 3-year Warranty
-
Quick Specs
Installed Airflow Accuracy
Ducts/Plenum: ±3% of reading, Non-ducted OA Intakes: better than or equal to ±5% of reading
PC Sensor Density
Mounting Options & Standard Size Limits
Insertion : 6 to 191 in. [152.4 to 4851 mm]
Stand-off: 6 to 190 in. [152.4 to 4826 mm]
Internal: 8 to 194 in. [203.2 to 4928 mm]
Power Requirement
24 VAC (22.8 to 26.4 under load) @20V-A
