Back to Products
Gree: Kinghome

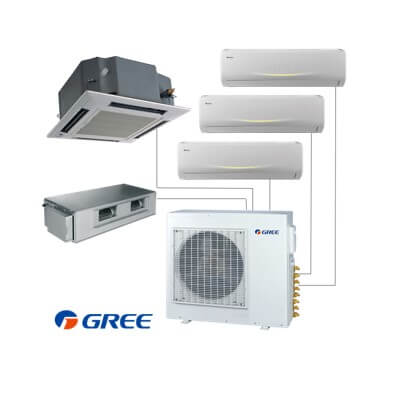

Kinghome Free-Match Multi-Split w/o Line Sets
Qty
Locations Available:
All Regions, Arizona, New Mexico, Southern Nevada, Southwestern Texas
Additional Information
-
Description
The Free-match split system outdoor unit can be freely connected to different types of indoor units according to various indoor application requirements. Inverter air conditioners reduce power consumption annually and offer precise temperature control of the indoor environment.
- All DC inverter compressor and DC motor are adopted, so the energy efficiency of the unit is higher and the power consumption in standby is lower.
- Intelligent defrosting technology is applied. Defrosting is performed according to the actual frosting status judged by the temperature sensor, which effectively improves heating efficiency and ensures comfort in the room.
- Cooling and heating function at low ambient temperature is available. The unit can cool normally at an outdoor temperature of 0℉ and heat normally at an outdoor temperature of 0℉.
- The I-demand function is available. When the energy-saving mode command is received by the outdoor unit, the upper power limit of the unit will be controlled, with energy-saving of 25%.
- The indoor unit adopts DC motor design, with a wide static pressure range. The nominal static pressure is 50Pa and the maximum static pressure is up to 200Pa. It can satisfy the requirements of long-distance air supply as well as multiple rooms’ air supply.
- Low power consumption design (1W standby). The standby power consumption for the complete unit is only about 1W, while the standby power consumption for the normal 5HP unit is more than 10W. Therefore, the energy efficiency under standby status is improved by 10 times.
- The whole series units have AHRI certificates and ETL safety certificates. The unit adopts metal propeller housing, metal blade and metal filter, and the inside insulation sponge has especially used the high-grade fireproof.
-
Quick Specs
BTU Range
Outdoor Unit: 18K – 56K
Indoor Unit: 9K – 24K
Line Sizing inch(mm)
Gas piping:
1/2 (12.7) & 5/8 (15.9)
Liquid piping:
1/4 (6.35) & 3/8 (9.52)
Models (XX=BTU)
Regular Condensing Unit:
KM(18,24,30,36,42,48,56)H4O
Ultra Heat Condensing Unit:
KM(18,24,36,42,48)UH5O
30.5 SEER Wall Mount Unit:
KW(09,12,18)HUCA4DI
23 SEER Wall Mount Unit:
KW(09,12,18,24)HQ2B8DI
Regular Ducted Unit:
KM(09,12,18,21,24)HFDI
High ESP Ducted Unit:
KM(09,12,18,21,24)HF1DI
Cassette Compact (2’x2′) Unit:
KM(12,18,24)HK1DI
Floor Ceiling Unit:
KM(09,12,18,24)HT1DI
Electrical
208-230 V, 1 Ph, 60 Hz
-
Product Literature
23 SEER Wall Mount 24K 230V Product Data Sheet
23 SEER Wall Mount 18K 230V Product Data Sheet
23 SEER Wall Mount 12K 230V Product Data Sheet
23 SEER Wall Mount 9K 230V Product Data Sheet
_______________________________________
30.5 SEER Wall Mount 18K 230V Product Data Sheet
30.5 SEER Wall Mount 12K 230V Product Data Sheet
30.5 SEER Wall Mount 9K 230V Product Data Sheet
_______________________________________
High ESP Ducted 9K-24K Product Data Sheet
_______________________________________
Cassette 24K Product Data Sheet
Cassette 18K Product Data Sheet
Cassette 12K Product Data Sheet
_______________________________________
Floor Ceiling 24k Product Data Sheet
Floor Ceiling 18K Product Data Sheet
