Ebtron
Servaire Series 1000, Servaire-E100
Locations Available:
Arizona, New Mexico, Southern Nevada, Southwestern Texas
Additional Information
-
Description

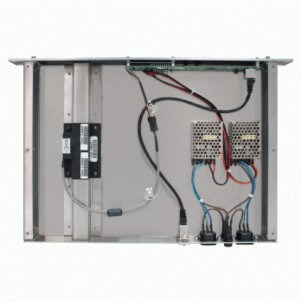

The SERVAIRE-E100 rack mount bidirectional airflow measurement device can detect very small pressure differentials (as low as 0.0002″ H₂0) across containment zones by measuring the airflow bled across a false server. Temperature measurement of the bleed airflow path is also provided.
- Thermal Dispersion Technology
- Bi‐direction Airflow Measurement
- Equivalent ΔP Output Capability
- Detect ∆P as low as 0.0002″ H2O
- Temperature Measurement
- Alarm Capability
- Ethernet Network Connection
- Server Rack Mounting
- LCD Display
- 3‐year Warranty
-
Quick Specs
Power Requirement
110 VAC @ 8V-A
Standard 1U Rack Height Enclosure
1.75H x 19W x 12D in. [44.5 x 482.6 x 304.8 mm]
B.A.S. Connectivity
SERVAIRE-E100: One isolated Ethernet (simultaneously supported BACnet Ethernet or BACnet IP, Modbus TCP and TCP/IP) network connection – supports up to 10 simultaneous connections
